| Structure: | Singe-stage | Material: | High Chrome Alloy, A05, Cr26, Cr27 |
|---|---|---|---|
| Fuel: | Electric | Application: | Metallurgy, Mining, Pwoer Plant, Tailing, Coal Wing |
| Highlight: | Heavy Duty Slurry Pump,High Pressure Slurry Pump |
||
Fly Tunnelling Application Mining Pump for and slurry transfering with Wear Resistant material
Introduction

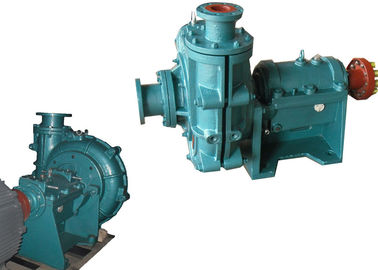

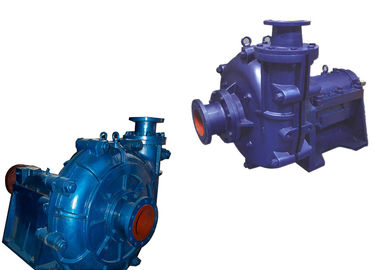

Mineral Processing electric Slurry Pumps are cantilevered, horizontal centrifugal slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.
Mineral Processing electric Slurry Pumps are manufactured to be interchangeable with the most common slurry pump designs and feature a wide range of options.
Mineral Processing electric Slurry Pumps provide rugged performance and reliability in the most demanding slurry pumping applications.
Material
| Parts | Material | Specification |
|
Volute Liner, Impeller,Throatbush, FPL insert |
Hard Metal |
A05:23~30% A07:14~18% A12:30% A49:27~29%A33:33~37% Chrome White Iron |
| Rubber |
R26 R08 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon; S44; Neoprene |
|
| Expeller&Expeller Ring | Metal | A05 23~30% High Chrome Iron G01: Grey Iron |
| Rubber | R26 R08 R38 R33 Natural Rubber | |
| Stuffing Box | Metal | A05 23~30% High Chrome Iron G01: Grey Iron |
|
Frame Plate,Cover Plate,Base Bearing housing |
Metal | G01 Grey Iron D21 Ductile Iron |
| Shaft | Carbon Steel | Type 1045(ASTM) |
|
Shaft Sleeve,Lantern Rings,Restrictor ,Neck Ring,Gland Bolts |
Stainless Steel | 3Cr13,304SS,316SS |
| Joint Ring&Seals | Rubber |
R26 R08 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon; S44; Neoprene |
Application

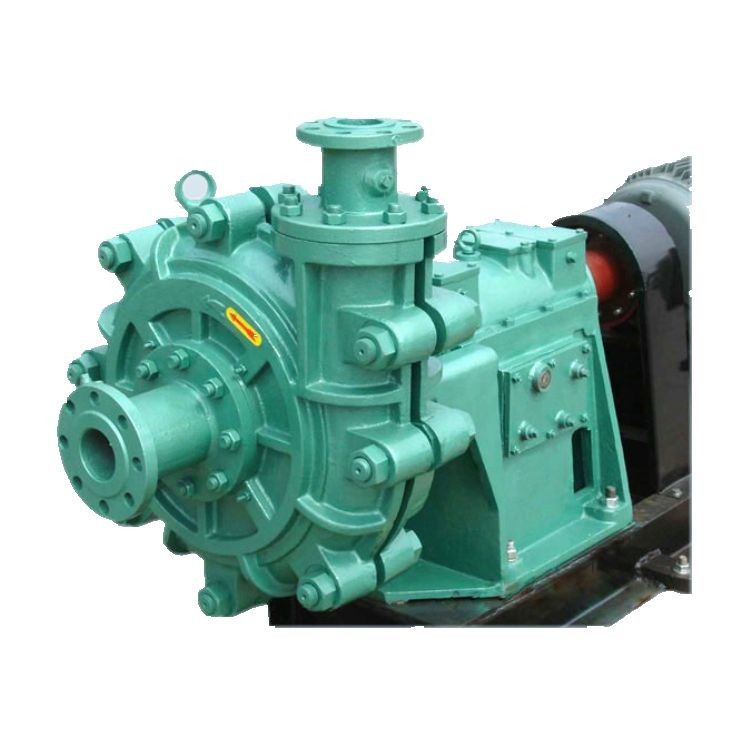

High Head mining electric slurry pump, double casing structure, high efficiency, wear resistant, stable performance, easy assembly, lining and impeller can be made of wear metal, and the discharge outlet can be adjusted with rotation interval of 45 degree, the impeller can be cut for site condition, the pumps can be operated in series and driven with belt..
Mining
Metallurgy
Chemical Process
Heavy Minerals
Paper and Pulp
Mill Discharge
Sugar Beet
Slag Granulation
Bottom Boiler and Fly
Cyclone Feed
Power Plants
other industry
Company Introduction
Shijiazhuang Aier Machinery Co., Ltd. is a large-scale professional manufacturer of slurry pumps, gravel pumps, dredge pumps, sewage pumps and clean water pumps in China.
All products are mainly supplied to environmental protection, wastewater treatment, urban water supply and drainage, mine, metallurgy, coal, petrochemical, building material, thermal power FGD, river dredging, tailing disposal and other fields. The products are selling well in China and sold far to Germany, U.S., Canada, Australia, Russia, Ukraine, Kazakhstan, Brasil, Chile, Argentina, Bolivia, Malaysia, Indonesia, India, Poland, South Africa, Tanzania, etc.
Our firm has strong technical force and is specially engaged in the research of abrasion resistant materials of slurry pumps, sewage pumps and water pumps and the development of new products. The materials include high chrome white iron, duplex stainless steel, stainless steel, ductile iron, rubber, etc.
We use CFD, CAD method for product design and process design based absorbing experience of world leading pump companies. We integrate molding, smelting, casting, heat treatment, machining and chemical analysis, and have professional engineering and technical personnel.
Our company started to build our new factory in 2013 and finished in Spring of 2014. The new factory is located in Lincheng Xingtai Hebei, covering 67,000 m2 and of annual design annual casting capacity 3,000 tons. In the new factory, we can produce different parts from small to huge. Casting & machining orders are welcome as well.
