Product Details:
Payment & Shipping Terms:
|
| Features: | Fit Most Standrad Sand Dredging Pump Types | Material: | A05, A07, A33, A49 |
|---|---|---|---|
| OEM: | Acceptable | Application: | Interchangable To Minng Slurry Pump, Slurry Pump, Sand Dreding Pump Parts |
| Process: | Cast | ||
| Highlight: | Pump Parts,Centrifugal Pump Spare Parts |
||
sand pump wet parts of abrasion resistant & anti-corrison high chrome cast iron material A05, A49, Cr26 Cr 27 Alloy
Pump Specification:
| sand dredging pump | G type sand dredging pump |
| Model | G |
| Material | High Chromium cast iron and customized |
| Color | adjustable |
| Mode | Horizontal |
| Drive | Belt or coupling |
| Seal | Soft packing seal or mechanical seal |
| Speed | adjustable |
| Usage | sand, gravel, slurry, mud |
| Power | Electric |
| Standard or Nonstandard | Standard |
| Application | Dredging, Dewatering, mining |
| Outlet diameter | 4-16 inch |
| Capacity | 36-4300 m³/h |
| Head | 7-77m |
| Power | 4-220 kw |
| OEM | Acceptable |
Application:
1.Sand Dredging pump are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.
2. Suitable for dredging, mining and metal smelting blast slag delivery, etc

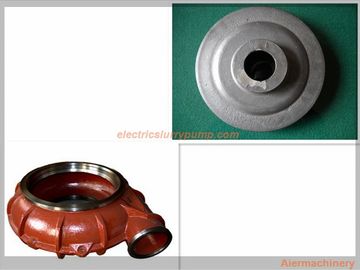

Parts :
1. sand gravel and Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings needed.
- Impeller
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Base
- Pump Volute;
- Cover Plate & Frame Plate
- Others
2. Materials
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
3. Short delivery time
For some slurry pump parts, stocks are available. We have large producing capacity to shorten the delivery time.
4. OEM slurry pump part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
5. Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
6. Notice for inquiry
Please send us complete slurry pump part name, part code and material name.
We arrange express delivery for you for urgent needs, such as DHL, Fedex, TNT.
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Frame/Cover plate, bearing house & base | Metal | Grey iron | G01 | ||
| Ductile iron | D21 | ||||
| Shaft | Metal | Carbon steel | E05 | ||
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt | Stainless steel | 4Cr13 | C21 | ||
| 304 SS | C22 | ||||
| 316 SS | C23 | ||||
| Joint rings & seals | Rubber | Butyl | S21 | ||
| EPDM rubber | S01 | ||||
| Nitrile | S10 | ||||
| Hypalon | S31 | ||||
| Neoprene | S44/S42 | ||||
| Viton | S50 |
