Product Details:
Payment & Shipping Terms:
|
| Material: | A05, A07, A33, A49, R08, R26, R33, | OEM: | Manufacture Accroding To Drawing |
|---|---|---|---|
| Application: | Interchangable To Minng Slurry Pump, Slurry Pump, Sand Dreding Pump Parts | ODM: | Acceptable |
| Production Time: | 15-40 Days | ||
| Highlight: | Centrifugal Pump Spare Parts,Slurry Pump Impeller |
||
Rubber lined slurry pump parts with anti-acid & corrison resistant material for mining, coal wing,
Slurry pump parts Specifications
1. Slurry Pump Spare Parts
2. High chrome cast iron
3. 20 years' experience
4. ISO mark
5. OEM ODM
China Made Industrial Slurry Pump Spare Parts

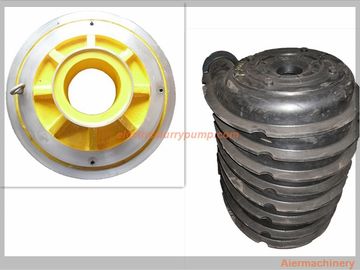

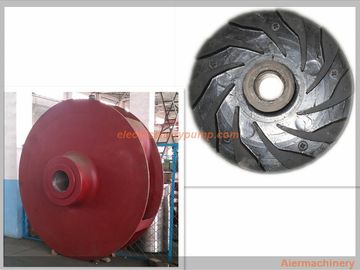

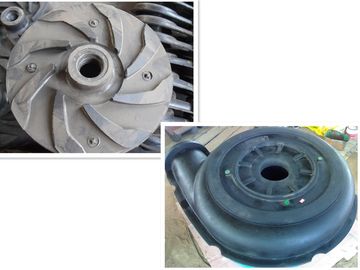

Slurry pump spare parts include:

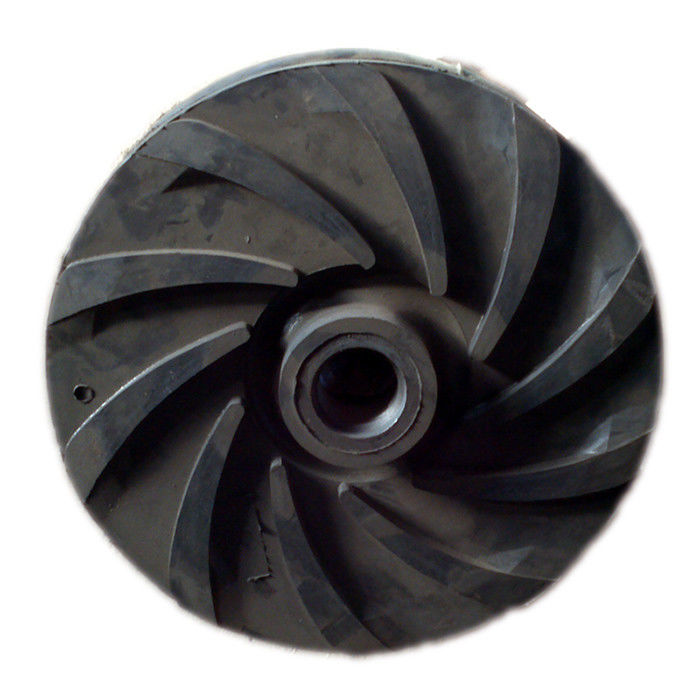

1. Impeller
2. Volute casing
3. Front/ rear liner plate
4. Front/rear casing
5. Shaft body
Materials of slurry pump spare parts
| Impeller | high-chrome / rubber |
| Volute casing | high-chrome, code A05 |
| Shaft | 45# steel thermal refining |
| Base/frame plate | ductile casting iron/gray casting iron |
| Pump seal | stuffing box and expeller; strut mount and expeller; stuffing box |
| Water seal ring and disassembly ring | stainless steel |
Materials
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Rubber | R08 | ||||
| R26 | |||||
| R33 | |||||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | G01 | ||||
| Frame/Cover plate, bearing house & base | Metal | Grey iron | G01 | ||
| Ductile iron | D21 | ||||
| Shaft | Metal | Carbon steel | E05 | ||
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt | Stainless steel | 4Cr13 | C21 | ||
| 304 SS | C22 | ||||
| 316 SS | C23 | ||||
| Joint rings & seals | Rubber | Butyl | S21 | ||
| EPDM rubber | S01 | ||||
| Nitrile | S10 | ||||
| Hypalon | S31 | ||||
| Neoprene | S44/S42 | ||||
| Viton | S50 |
